1064 nm Single-Frequency Fiber Laser

Product Description

The 1064 nm fiber laser utilizes all-fiber narrow-linewidth polarization-maintaining (PM) light at a power levels up to 50 W. A smart internet-of-things (IoT)-based control system is adopted to enable user-friendly interface. The system is packaged in a typical industrial 4U 19" rack-mountable chassis.

Product Selection Guide
532 nm 14 W second-harmonic generation (SHG) fiber laser.
1064 nm 50 W fiber laser.

Features

  • 1064 nm
  • High output power (50 W)
  • High reliability with all-fiber design
  •  Narrow linewidth (<20 kHz)
  •  Excellent power stability (<1%)
  •  User-friendly interface via IoT technology
  • 4U 19" Rack mount
  • Certified to IEC 60825-1:2014 safety standards

Applications

  • Laser cooling and trapping
  • Atomic interferometry
  • Quantum sensing
  • Quantum computing
  • Precision measurement

Single Frequency

QTek Laser amplifiers work with various kinds of seed lasers. They can be economic semiconductor diode lasers with MHz laser linewidth, robust fiber lasers with kHz linewidth, or cavity-locked ultra-stable lasers with Hz linewidth. Based on customer requirements, we can recommend the best options and integrate them into the laser system as illustrated in figure 1.

Diagram of a typical QTekLaser laser system. Seed laser and multi-stage amplifier
Figure 1. Typical single-frequency QTek Laser fiber laser.

Specifications

Wavelength1064 nm
Output power1-50 W
Polarization Extinction Ratio (PER)30 dB
Power stability<1%
Laser linewidth<20 kHz
Operating temperature17-25 °C
Wavelength tuning range>20 pm
Cooling modeWater cooling
Beam qualityTEM00, M2<1.05
Output modeFree space, collimated with ~2 mm 1/e² diameterr
Risidual Intensity Noise (RIN)-135 dBc/Hz >10kHz
Side-Mode Supression Ratio (SMSR)59 dB
Laser Head Size12"x9"x3.714"
Chassis4U 19" Rack mount
Class 4 Laser

QTek Laser's lasers comply with Federal Regulations (21 CFR Subchapter J, Part 1040)  as administered by the Center for Devices and Radiological Health and are certified to IEC 60825-1:2014 standards.

It is the end user's responsibility to ensure that no significant light is retroreflected back into QTekLaser systems as this can degrade performance and potentially damage the lasers. To prevent this, the use of an external optical isolator is strongly recommended.  Damage due to retroreflected light is not covered under warranty.

Ordering Information

Part Number: QT-SF-LASR-Yb-1064-50-W-2-2
Laser Type: Seed laser + Yb-doped fiber amp
Product Selection Guide

Performance

Power Stability: 1064 nm @50 W, <1%

Power Stability: 532 nm @14 W, <1%

Beam Quality: 1064 nm M2 <1.05

Beam Quality: 1064 nm M2 <1.05

Beam Profile: 1064 nm 1/e2 diameter 0.9 mm

Beam Profile: 1064 nm 1/e2 diameter 0.9 mm

Relative Intensity Noise (RIN): 1064 nm
-135 dBc/Hz >10kHz

Relative Intensity Noise (RIN): 1064 nm-135 dBc/Hz >10kHz

Optical Spectrum: 1064 nm SMSR 59 dB

Optical Spectrum: 1064 nm SMSR 59 dB

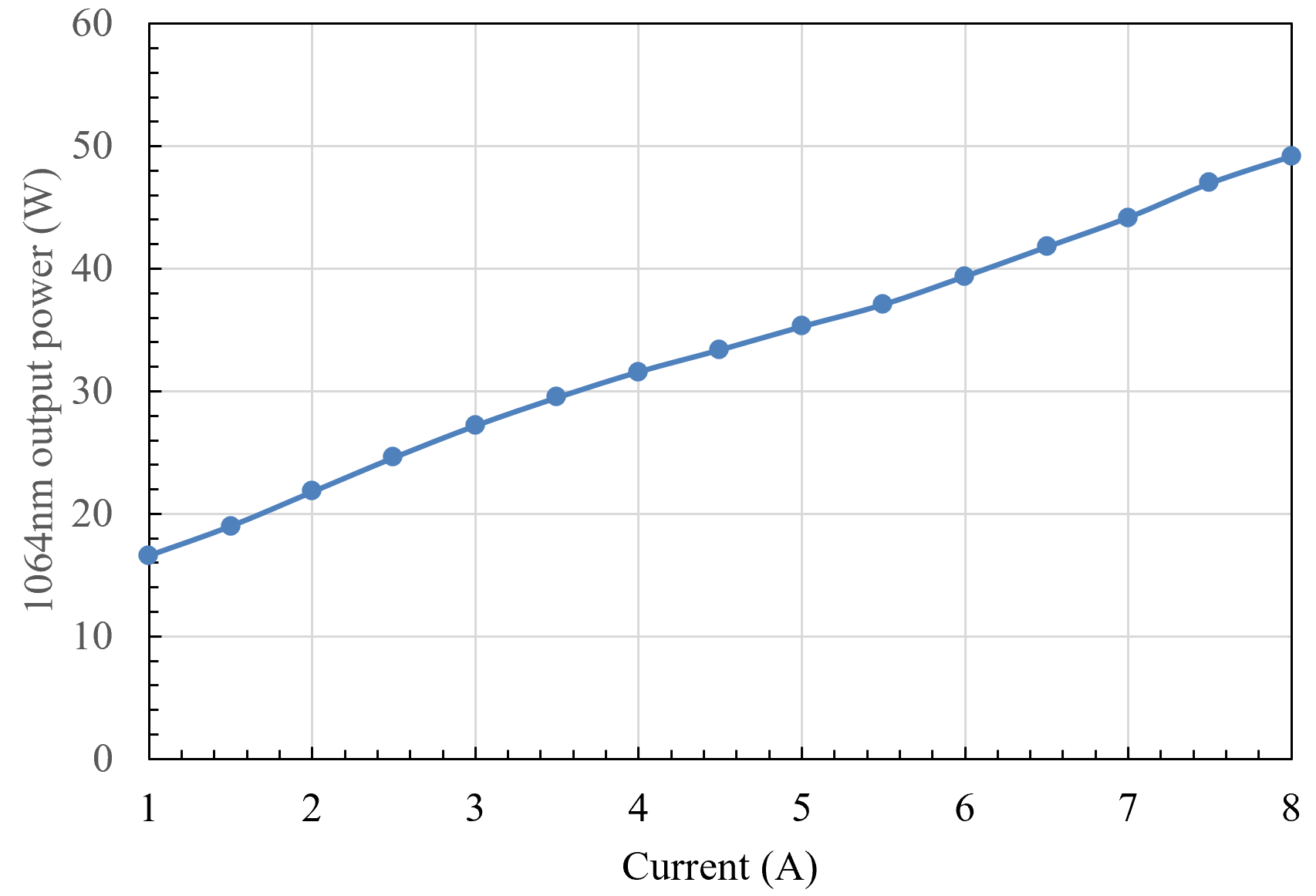

Laser Power vs. Current: 1064 nm

Laser Power vs. Current: 1064 nm

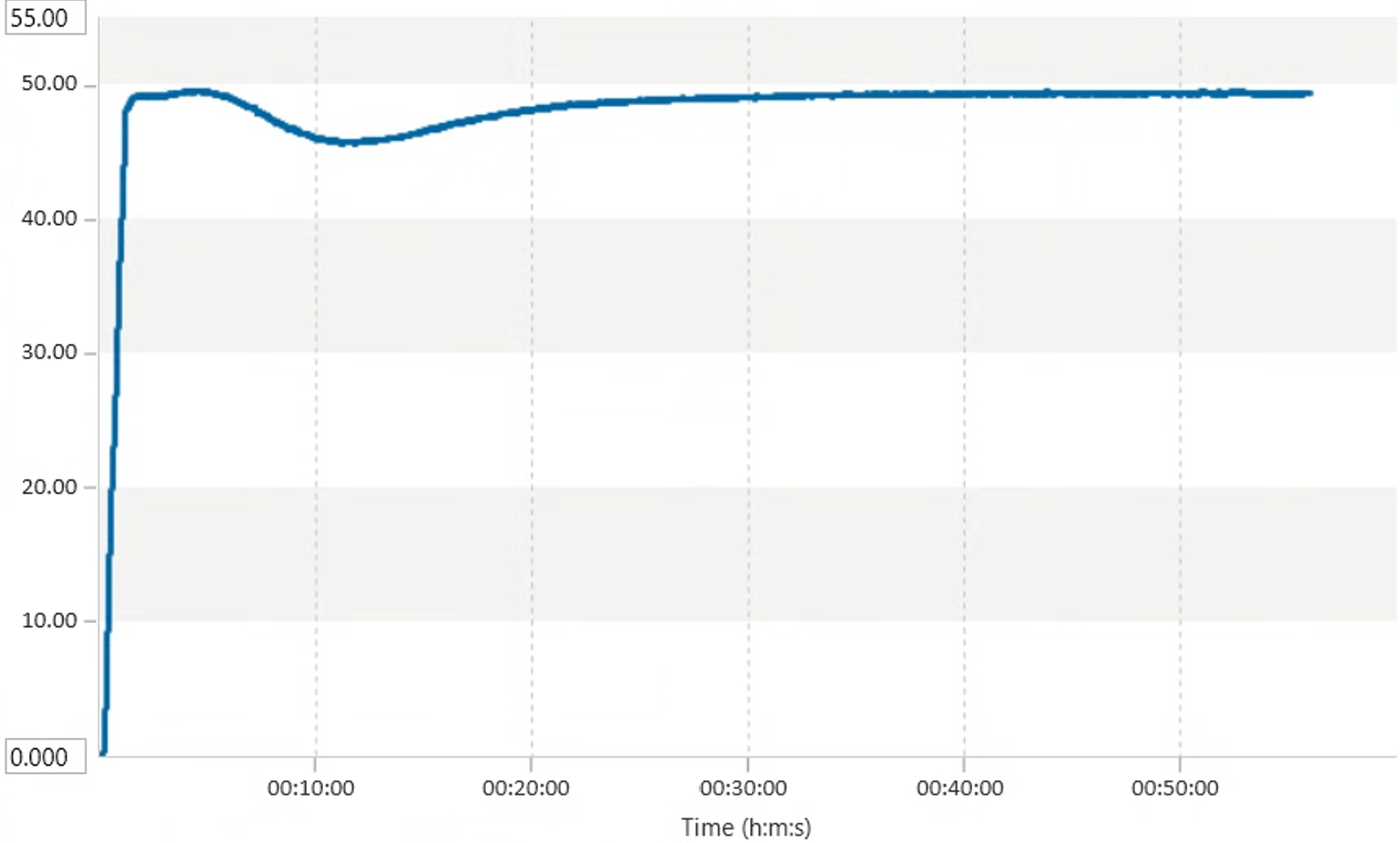

Cold Start Power: 1064 nm

Cold Start Power: 1064 nm

Mechanical Dimensions

1064 nm complete fiber-laser system mechanical dimensions.
1064 nm fiber-laser system mechanical dimensions.

Product Photos

532 nm complete fiber laser system 4U chassis water cooled
1064 nm fiber-laser system 4U chassis water cooled
532 nm complete fiber laser system 4U chassis back panel water cooled
1064 nm fiber-laser system 4U chassis back panel water cooled
